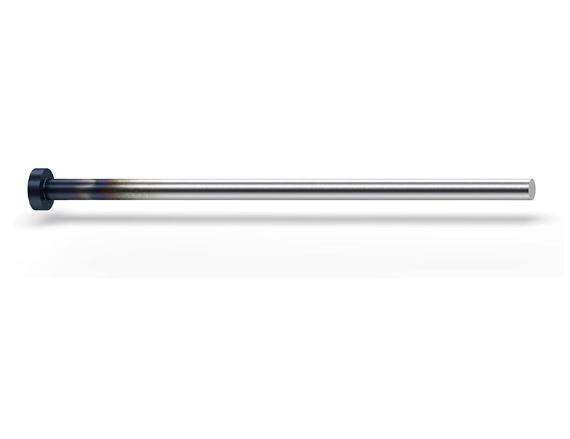

Type A ejector pins, manufactured from hardened and nitrided H13 special steel, combine wear resistance and the necessary elasticity to prevent breakage.
Material: Special hot-work steel with approximately 150 kg/mm² tensile strength (ISO 1.2344 / AISI H-13)
Standard: DIN1530-A/ISO 6751
Execution: Ground, hot-forged head.
Tolerance: Shank g6.
Hardness:
– Surface: >=950 HV (approx. 70 HRC) in nitrided options
– Core: >= 1400 N/mm² (approx. 45 HRC)
Finish: Polished
