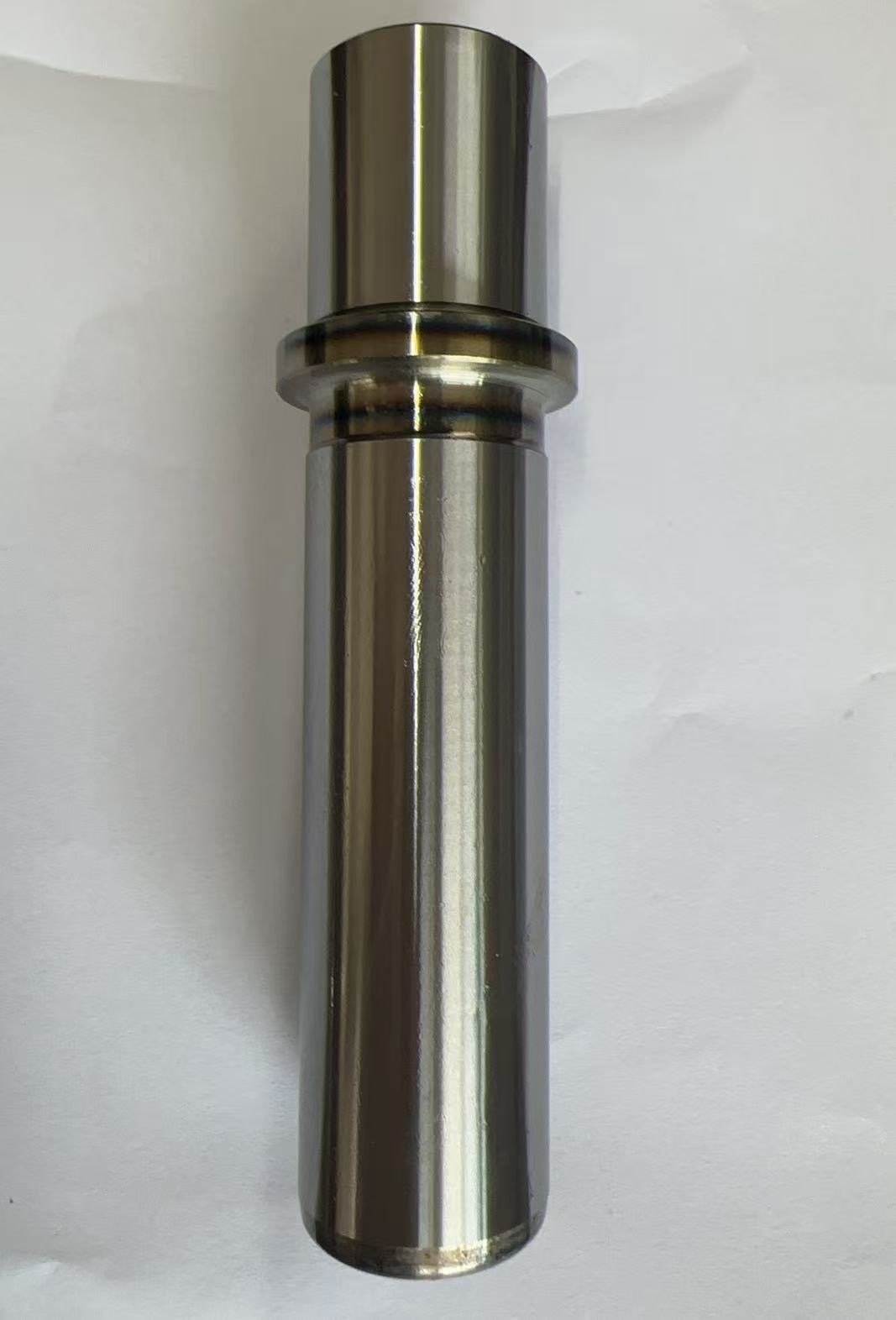

Guide pillars manufactured to your drawings and standards.

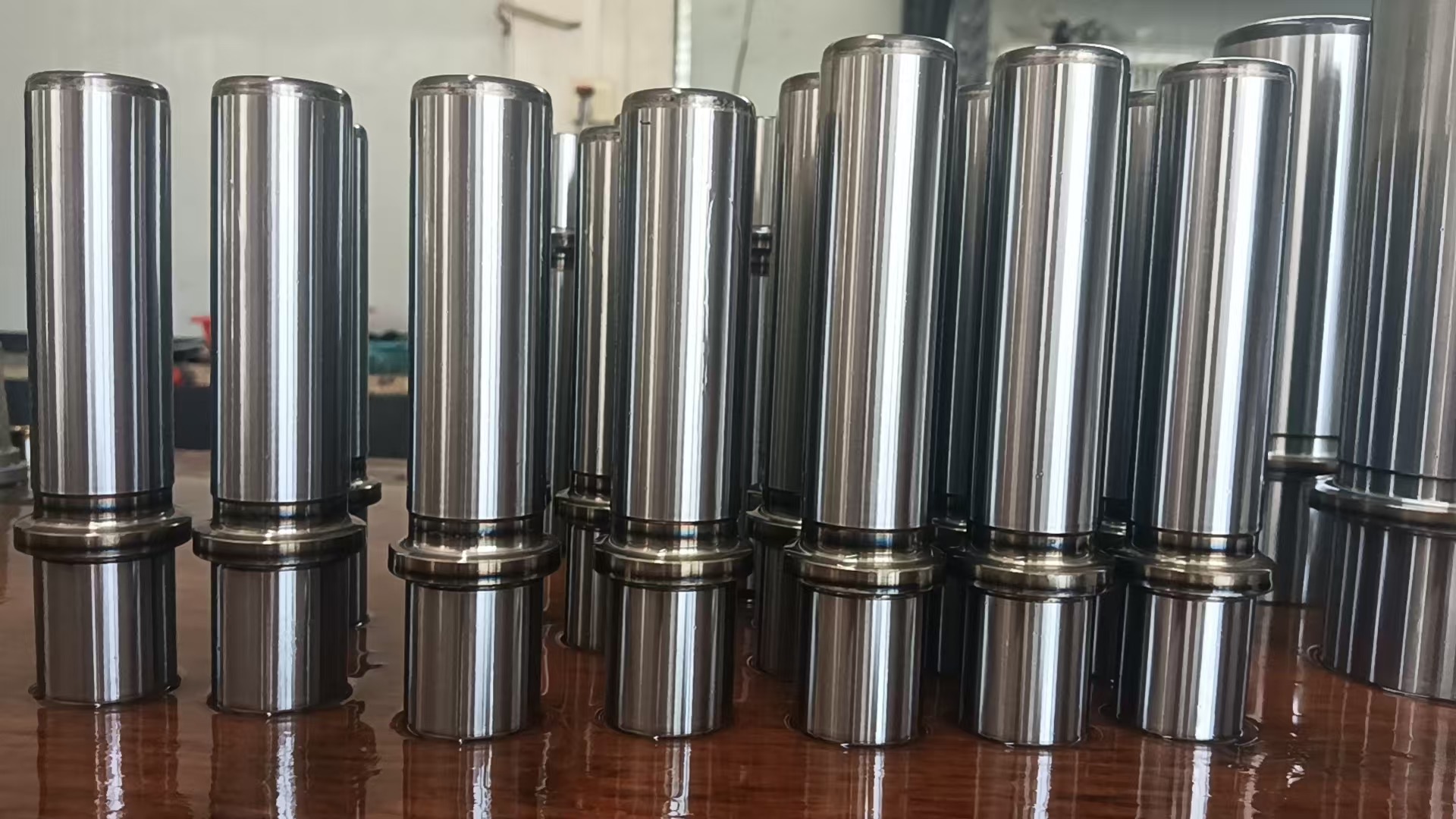

Material: 100Cr6 (1.3505), equivalent to GCr15 / SUJ2 / AISI 52100, induction hardened.
Surface hardness HRC 60–64, effective case depth 1.5–2.0 mm.
Tolerance: guiding diameter h3 as standard for all guide pillar types,
h4 and available on request.
Geometric tolerance capability:
– Roundness down to 0.003 mm, all grades per customer drawing
– Cylindricity down to 0.005 mm, all grades per customer drawing
– Surface finish: Ra 0.8 μm
Length tolerance: ±0.1 mm, all grades per customer drawing.
All tolerance grades manufactured to customer drawing.

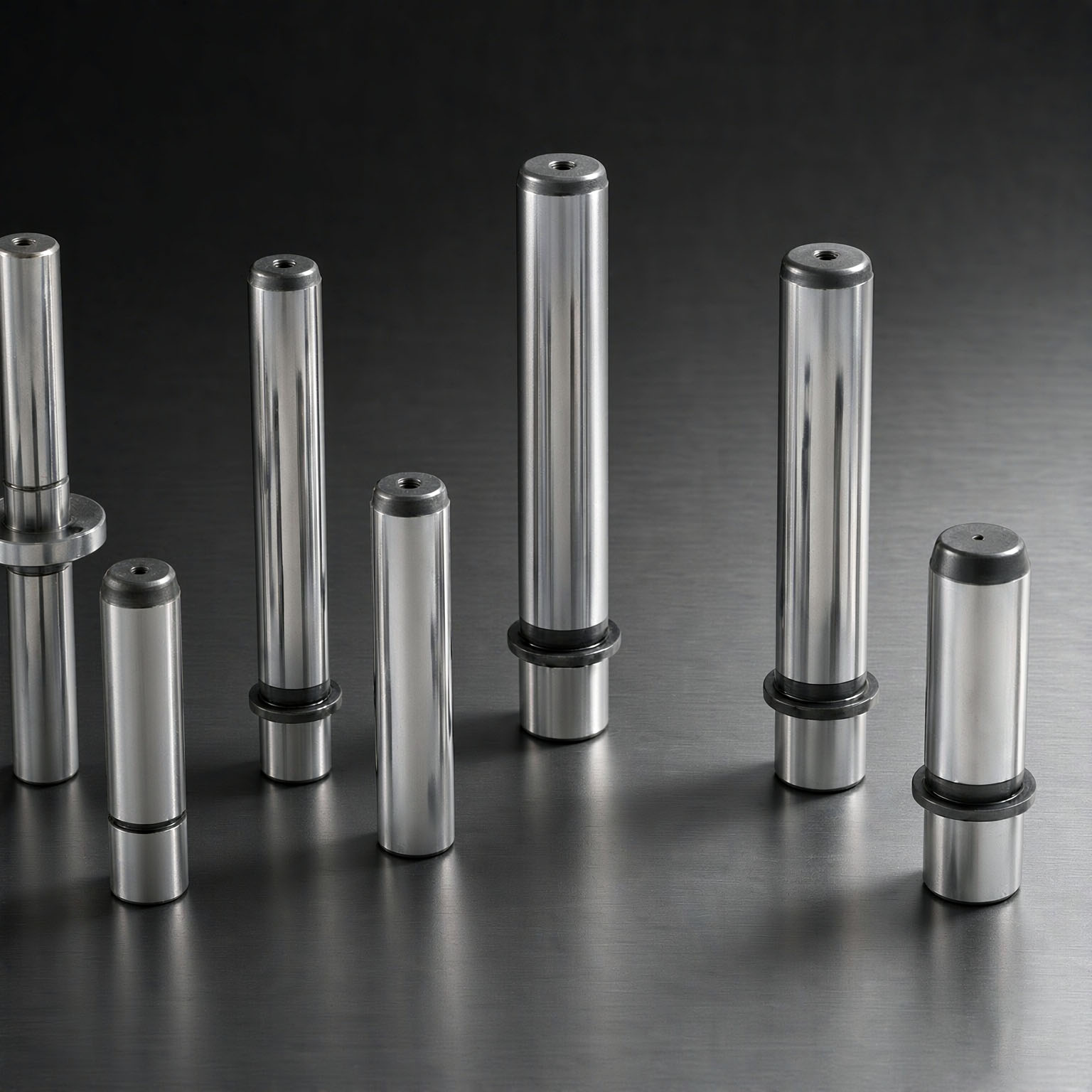

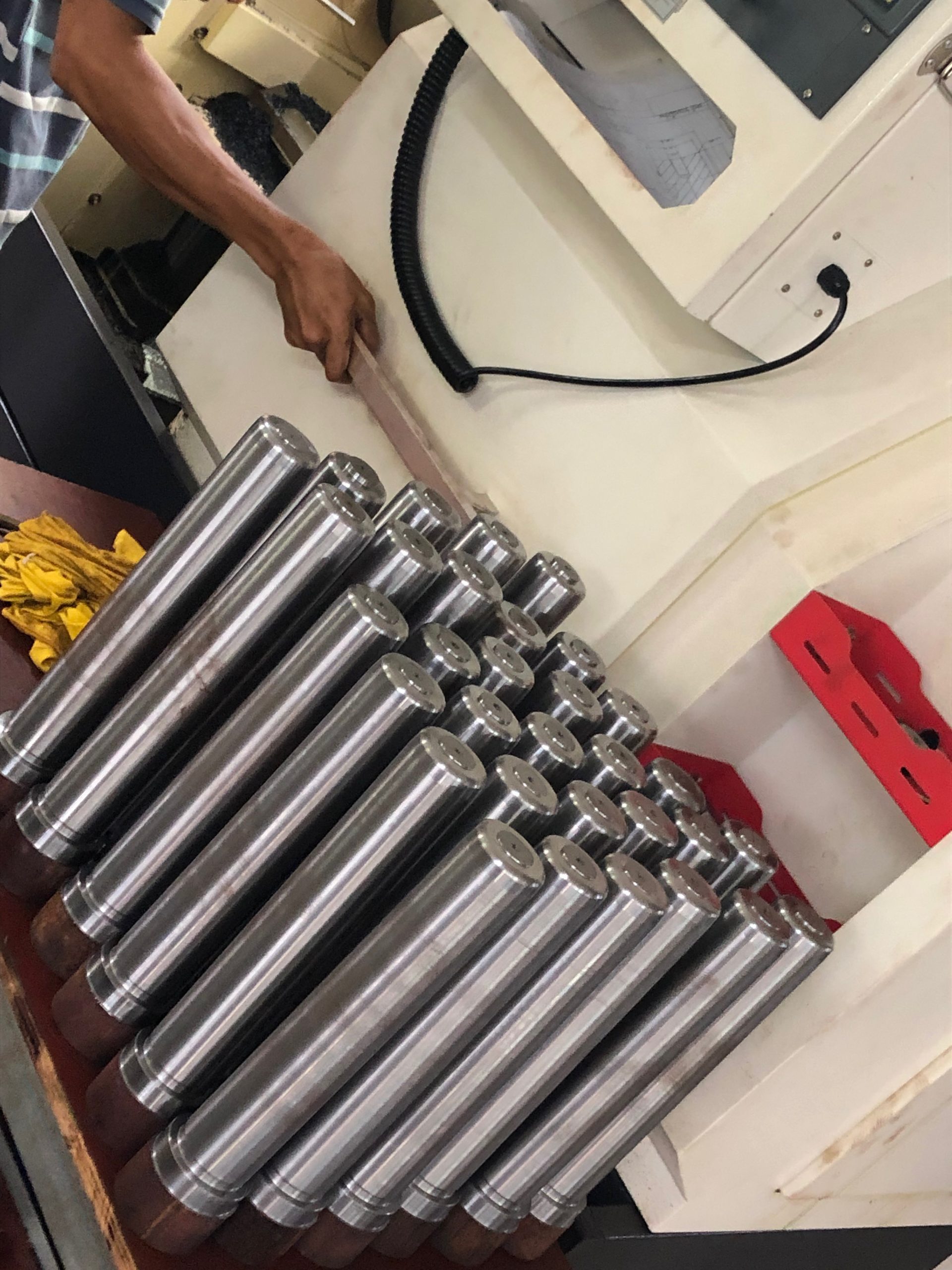

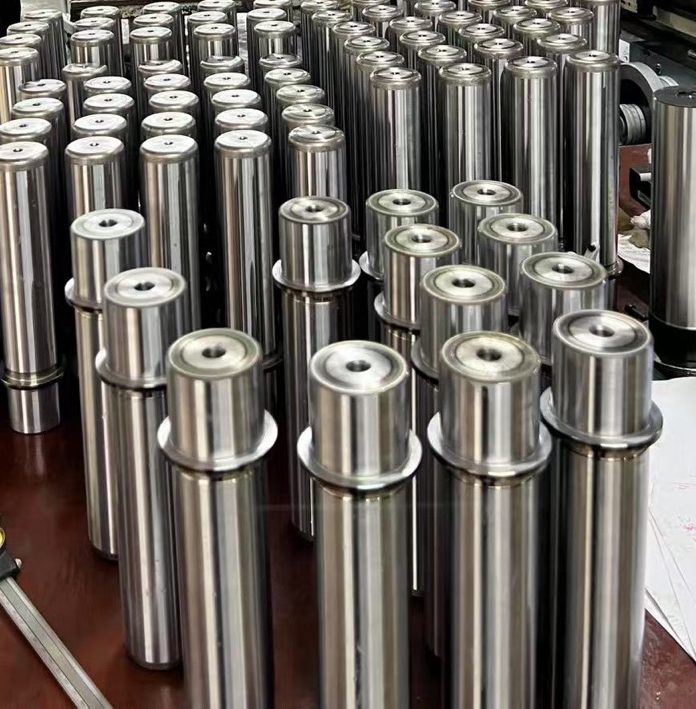

Guide pillars manufactured to ISO 9182, DIN 9825 ,DIN9833，AFNOR , IT STD. Non-standard diameters and lengths manufactured to drawing.
Available in stock sizes to ISO and DIN
Stock items ship within 2 working days. Production lead time for non-standard references: 1-2 weeks.
For quotations, send a drawing or a reference part. We check tolerances, material and heat treatment against your requirement and confirm manufacturability before we quote.
Specifications
| Item | Specification |
| Material | 100Cr6 (1.3505), equivalent to GCr15 / SUJ2 / AISI 52100 |
| Heat treatment | Induction hardened |
| Surface hardness | HRC 60–64 |
| Effective case depth | 1.5–2.0 mm |
| Standard | ISO / DIN /AFNOR /IT standard / to customer drawing |
| Stock sizes | Available in stock to ISO / DIN standard |
| Non-standard | Manufactured to drawing |
| Lead time | Stock: 2 working days. Non-standard: 1-2 weeks |
