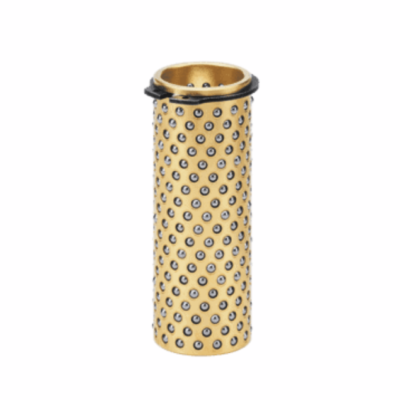

Precision Ball Cages for High-Speed Stamping & Die-Casting Dies
Ball cages (also known as ball retainers or steel ball bushings) provide rolling guidance for stamping and die-casting dies. The steel balls recirculate within the cage, reducing friction and enabling high-speed operation above 45 m/min — significantly higher than conventional sliding guides.
Technical Specifications

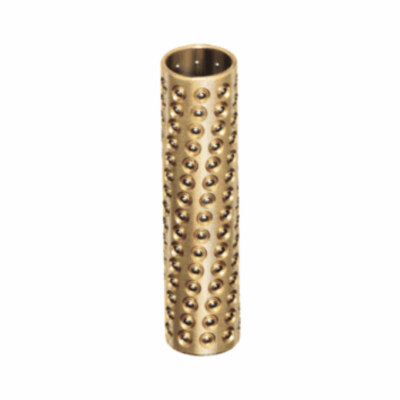

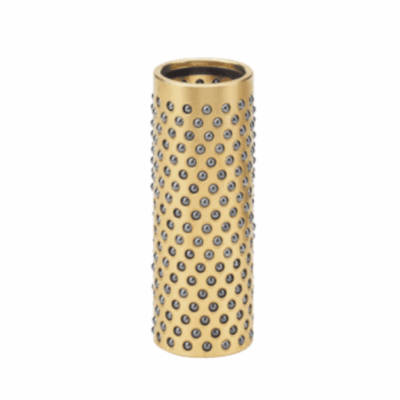

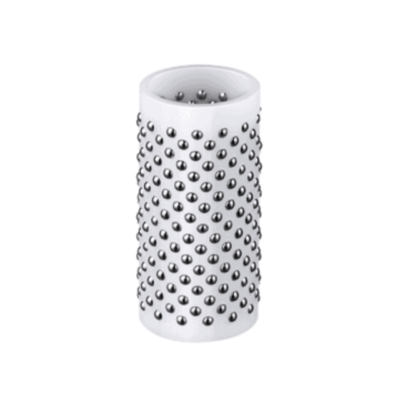

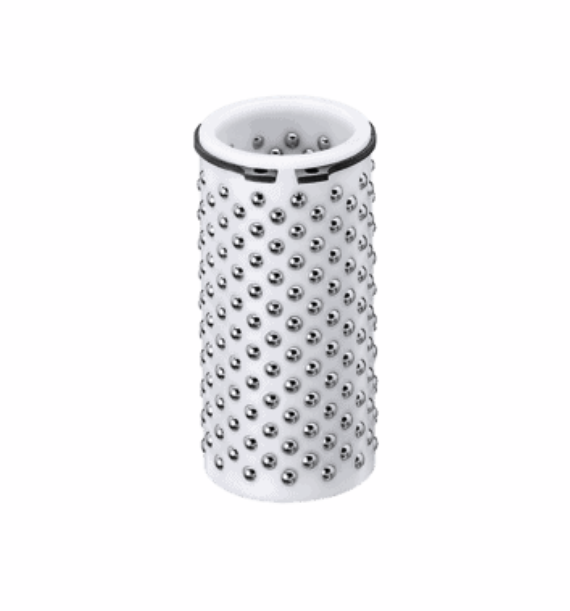

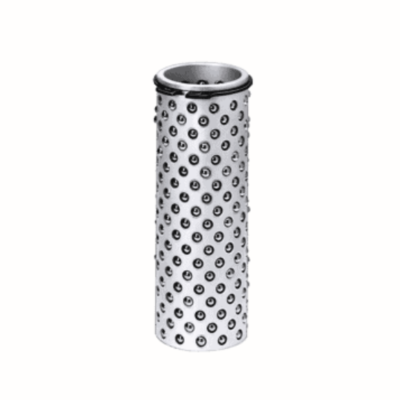

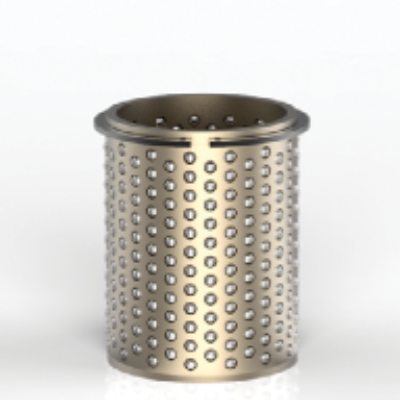

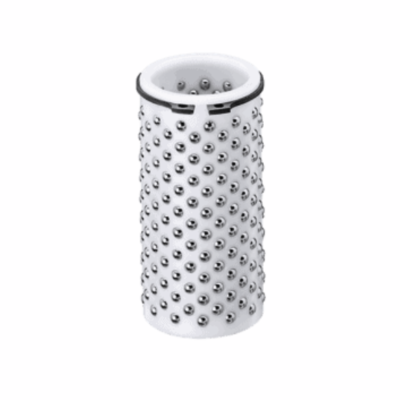

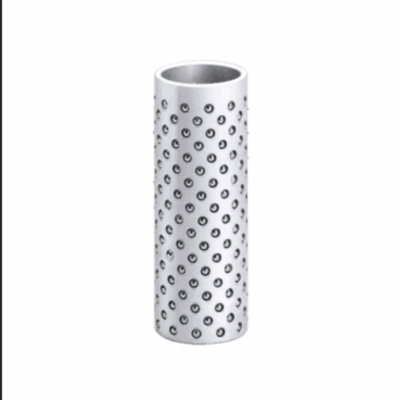

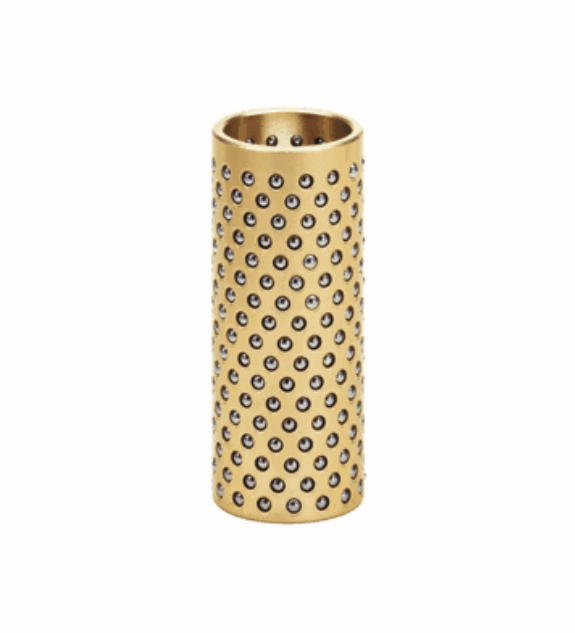

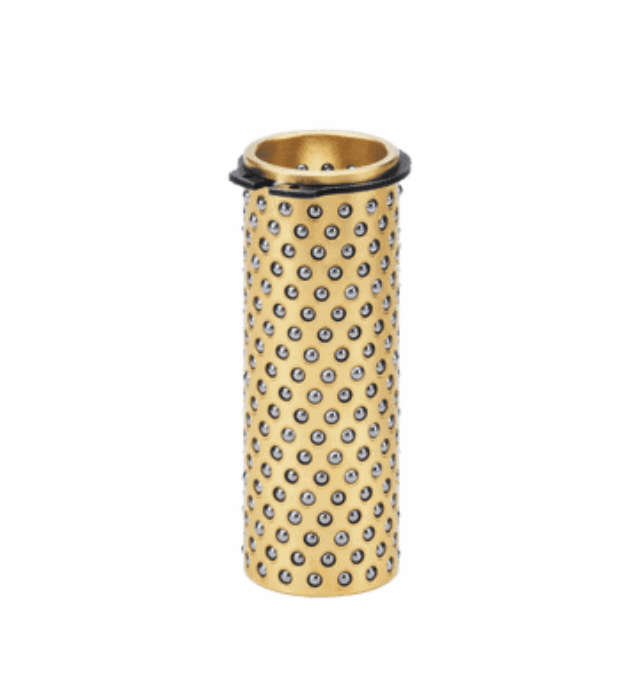

Materials: Aluminum / POM / Copper alloy (custom materials available)
Standards: ISO 9182 / DIN / any European standard
Ball size tolerance: ±0.0025mm for smooth, precise movement
Max. speed: 45+ m/min (rolling guidance)
Clearance: Near-zero clearance for precision applications
Typical Applications
• High-speed stamping dies
• Precision progressive dies
• Long-stroke die applications
• Automotive stamping tools
• Electronic component dies
Custom & OEM Services
We offer custom-engineered ball cages to your exact specifications:
• Non-standard sizes and materials
• Private-label programs (your brand, our quality)
• Prototype to production (small-batch trials welcome)
• Engineering support from drawing to finished part
Need a solution not listed here? Contact our engineering team.
