Manufacturing guide elements for stamping dies and die sets
Contract manufacture to your drawings and standards.
Material : 100Cr6 (1.3505), equivalent to GCr15 / SUJ2 / AISI 52100
Guide pillar – Induction hardened
Guide bushes – Through-hardened
Bimetallic bushes: Centrifugally casting, with a 1.5-1.8mm bronze layer
Ball cages – Alu, brass, Plastic
| Full in-house production | from raw material to finished part. Heat treatment, grinding and final inspection are done under one roof, so quality stays consistent from the first piece to the last. |
| Built to your specification | send a drawing or a part number; we check tolerances, material and heat treatment against your requirement and confirm manufacturability before we quote. |
| Cooperation models that fit your business | annual frame agreements, buffer stock based on your consumption data, and private-label manufacturing under your own branding. |
| Materials | ·Guiding elements :100Cr6 (1.3505), equivalent to GCr15 / SUJ2 / AISI 52100 ·Centrifugally case bronze-plated steel bushes: CuSn10Pb10 / 555 bronze ·punching elements: SKH-51， HSS，ASP23 ，M2, D2- ·Ejector pin / Sleeves: 1.2344 , H13, SUJ2- Ball cages: Alu, brass, Plastic |
| Processes | · turning · cylindrical grinding · internal grinding · induction hardening (60–64 HRC, effective case depth 1.5–2.0 mm) · through hardening (HRC60-62 ) · bronze lining by centrifugal casting. |
| Quality control | · 100% final inspection · dimensional report per batch · material certificate on request · hardness and case-depth verification |
| For you, we offer | How it works |
|---|---|
| Full in-house production — from raw material to finished part | Heat treatment, grinding and final inspection are all done in our own facility. Every batch is manufactured under one roof, so quality is consistent from the first piece to the last |
| Built to your specification | Send a drawing or a part number. We check tolerances, material and heat treatment against your requirement, and confirm manufacturability before we quote |
| Cooperation models that fit your business | Annual frame agreements, buffer stock based on your consumption data, and private-label manufacturing under your own branding. You choose the model that works for your supply chain. |
Available to ISO, DIN, AFNOR, IT standard, and customer-specific drawing
| Products | |
|---|---|
| Guide Components | Guide Pillars · Guide Bushes · Bronze-plated Bushes · Ball Cages · Clamps |

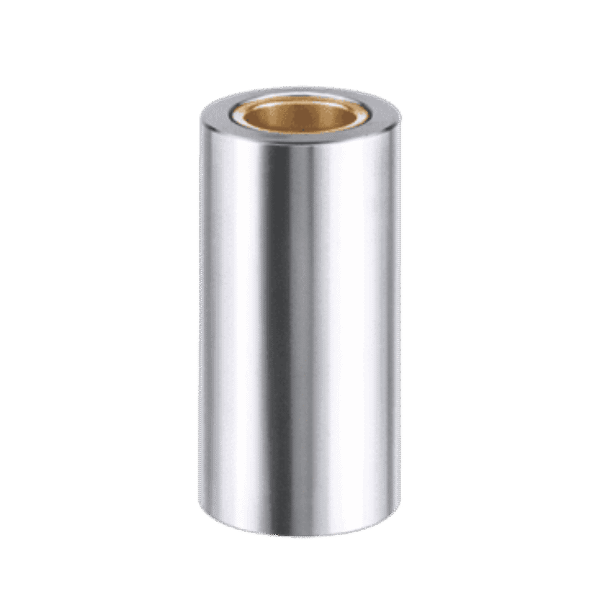

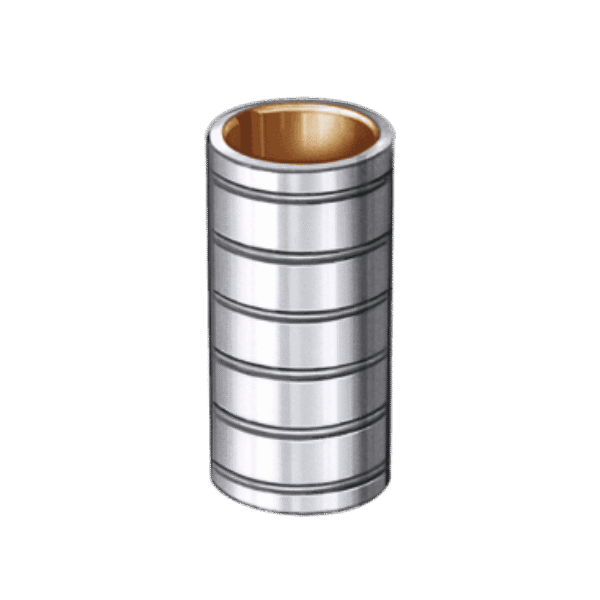

| Bimetallic Bushes (bronze-steel bushing) | centrifugally cast, full metallurgical bond, bronze layer 1.5–1.8 mm |
| Custom non-standard diameters and lengths | manufactured to drawing |
| Punching elements | Punch pins & Dies |

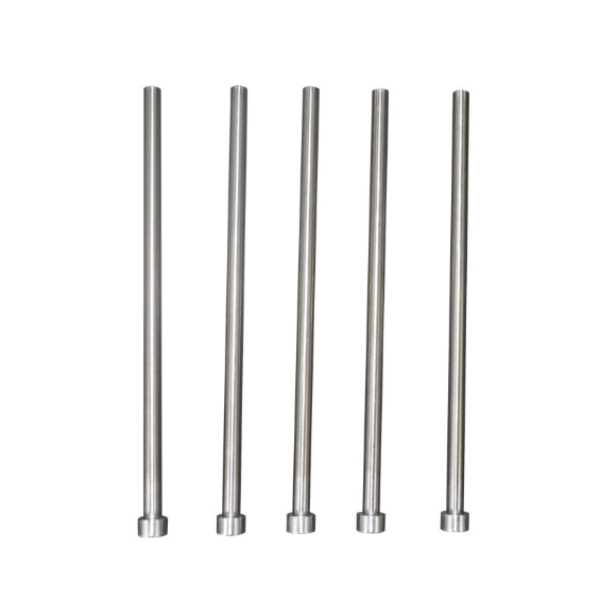

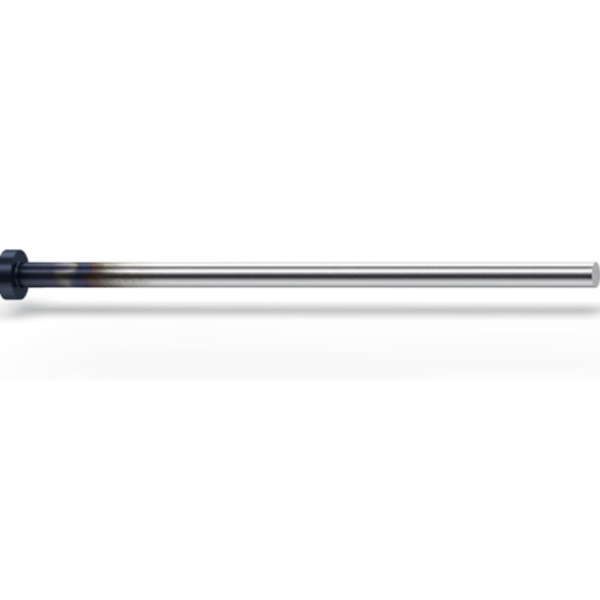

| Ejection | Ejector pins , Sleeves, Nitrided ,oxidized (whole black ), hardened |
We work to your drawing, your standard, your timeline. Your code, your identification, your packaging — we manufacture and deliver without our brand appearing on the parts.
| what you get | How we deliver |
|---|---|
| **A part made to your drawing** | From raw material to finished part — heat treatment, grinding and final inspection all done in-house. |
| **A partner who works to your standard** | ISO, DIN, AFNOR ,IT standard , and customer-specific technical specifications. |
| **A production program that fits your business** | frame agreements, buffer stock, private-label manufacturing. |
| **A responsive manufacturing partner** |
Tell us what you need — a reference code, a drawing, or a sample. We confirm manufacturability and come back with a price and lead time.
